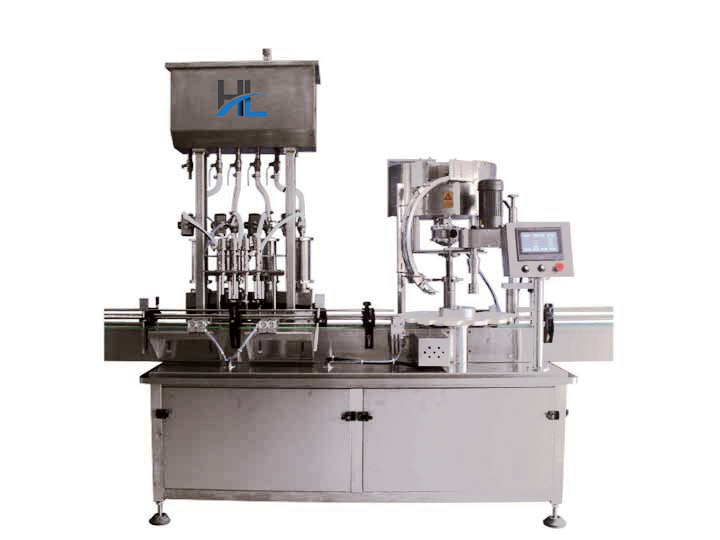

BGX-4-1D Automatic Filling and Capping Machine
Key word：BGX-4-1D Automatic Filling and Capping Machine
Classification：Filling&Capping Machine
Product overview：The equipment is automatic filling and capping machine, which makes the high-viscosity filling and ordinary pressure filling into one. Under the high-viscosity mode, the machine adopts the cylinder to control filling head……
Details
Photo gallery
Video
Product Description:
The equipment is automatic filling and capping machine, which makes the high-viscosity filling and ordinary pressure filling into one. Under the high-viscosity mode, the machine adopts the cylinder to control filling head so that it can ensure the stability and precision; under the ordinary pressure filling mode, the filling part adopts fixed passageway parameters, and the machine realizes the different filling dose by controlling the filling time.
·Suitable diameter of bottles : Ф40mm~Ф100mm
·Measure precision : ±1% (≤200ml), ±0.5% (200ml~1000ml)
·Production capacity : ≤3000 bottles/hour
·Air pressure : 0.6~0.8Mpa
·Amount of Air-consuming : 200 l/min
·Power supply : AC 220V/50Hz
·Power : 3Kw
·Machine weight : about 1000Kg
·Machine dimension (L×W×H) : 2200mm×2000mm×2100mm
The equipment is automatic filling and capping machine, which makes the high-viscosity filling and ordinary pressure filling into one. Under the high-viscosity mode, the machine adopts the cylinder to control filling head so that it can ensure the stability and precision; under the ordinary pressure filling mode, the filling part adopts fixed passageway parameters, and the machine realizes the different filling dose by controlling the filling time.
Main Performance Parameter:
·Filling volume : 50ml~1000ml·Suitable diameter of bottles : Ф40mm~Ф100mm
·Measure precision : ±1% (≤200ml), ±0.5% (200ml~1000ml)
·Production capacity : ≤3000 bottles/hour
·Air pressure : 0.6~0.8Mpa
·Amount of Air-consuming : 200 l/min
·Power supply : AC 220V/50Hz
·Power : 3Kw
·Machine weight : about 1000Kg
·Machine dimension (L×W×H) : 2200mm×2000mm×2100mm
-
BGX-4-1D Automatic Filling and Capping Machine
