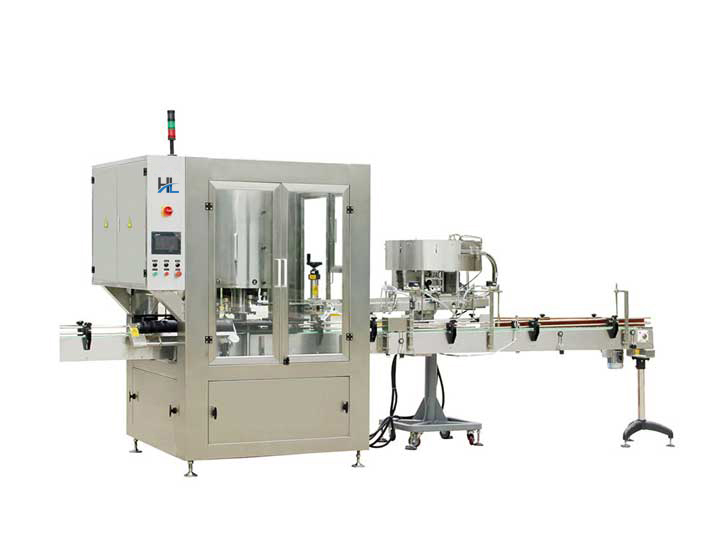

BHX-6D Automatic Rotating Capping Machine
Key word：BHX-6D Automatic Rotating Capping Machine
Classification：Capping/Sealing Machine
Product overview：This machine is conveying the bottle to the screw conveyor, and then goes to the star plate to the capping machine, the bottle-chuckle chuck the bottle neck(or the belt strap-ping the bottle) to capping ……
Details
Photo gallery
Video
Product Description:
This machine is conveying the bottle to the screw conveyor, and then goes to the star plate to the capping machine, the bottle-chuckle chuck the bottle neck(or the belt strap-ping the bottle) to capping process .Finally through the star plate, the capped bottle conveyed to the next belt. The whole capping process finished.
·Applicable Height: 80mm~250mm
·Cap Specification: Ф15mm~Ф50mm
·Speed: ≤8000 bottle/hour
·Air Pressure: 0.6~0.8Mpa
·Air Consumption: 200L/min
·Power Source: AC 380V/50Hz
·Power: 3Kw
·Weight: about1600Kg
·Machine dimension (L×W×H) : 3500mm×1360mm×2400mm
This machine is conveying the bottle to the screw conveyor, and then goes to the star plate to the capping machine, the bottle-chuckle chuck the bottle neck(or the belt strap-ping the bottle) to capping process .Finally through the star plate, the capped bottle conveyed to the next belt. The whole capping process finished.
Main Performance Parameter:
·Applicable Dimension: Ф40mm~Ф90mm·Applicable Height: 80mm~250mm
·Cap Specification: Ф15mm~Ф50mm
·Speed: ≤8000 bottle/hour
·Air Pressure: 0.6~0.8Mpa
·Air Consumption: 200L/min
·Power Source: AC 380V/50Hz
·Power: 3Kw
·Weight: about1600Kg
·Machine dimension (L×W×H) : 3500mm×1360mm×2400mm
-
BHX-6D Automatic Rotating Capping Machine
