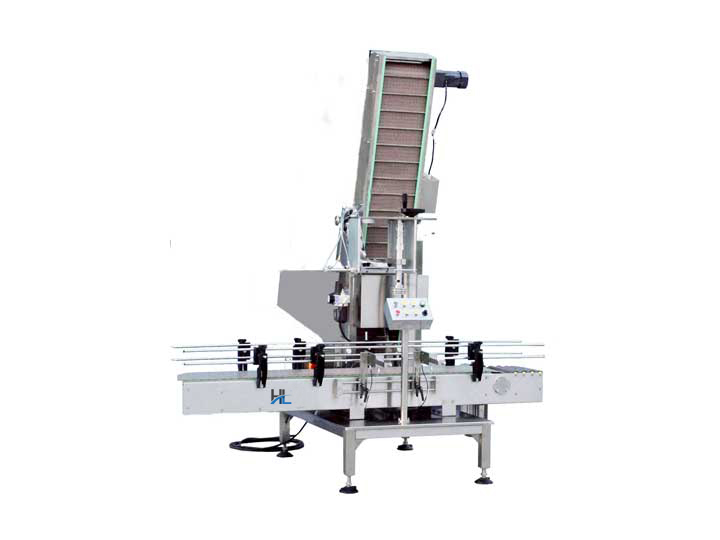

BSX-1D Automatic Single-head Capping Machine
Key word：BSX-1D Automatic Single-head Capping Machine
Classification：Capping/Sealing Machine
Product overview：This machine consists of cap unscrambling structure, grasping and capping structure, conveying part and control system. This capping machine has the feature of simple structure and easy adjustment……
Details
Photo gallery
Video
Product Description:
This machine consists of cap unscrambling structure, grasping and capping structure, conveying part and control system. This capping machine has the feature of simple structure and easy adjustment which is suitable for capping of large drums.
·Applicable Height: 100mm~500mm
·Cap Specification: Ф35mm~Ф75mm
·Speed: ≤900 bottle/hour
·Air Pressure: 0.6~0.8Mpa
·Air Consumption: 20L/min
·Power Source: AC220V、50Hz
·Power: 2Kw
·Weight: about600Kg
·Machine dimension (L×W×H) : 1500mm×1800mm×2400mm
This machine consists of cap unscrambling structure, grasping and capping structure, conveying part and control system. This capping machine has the feature of simple structure and easy adjustment which is suitable for capping of large drums.
Main Performance Parameter:
·Applicable Width: 100mm~350mm·Applicable Height: 100mm~500mm
·Cap Specification: Ф35mm~Ф75mm
·Speed: ≤900 bottle/hour
·Air Pressure: 0.6~0.8Mpa
·Air Consumption: 20L/min
·Power Source: AC220V、50Hz
·Power: 2Kw
·Weight: about600Kg
·Machine dimension (L×W×H) : 1500mm×1800mm×2400mm
-
