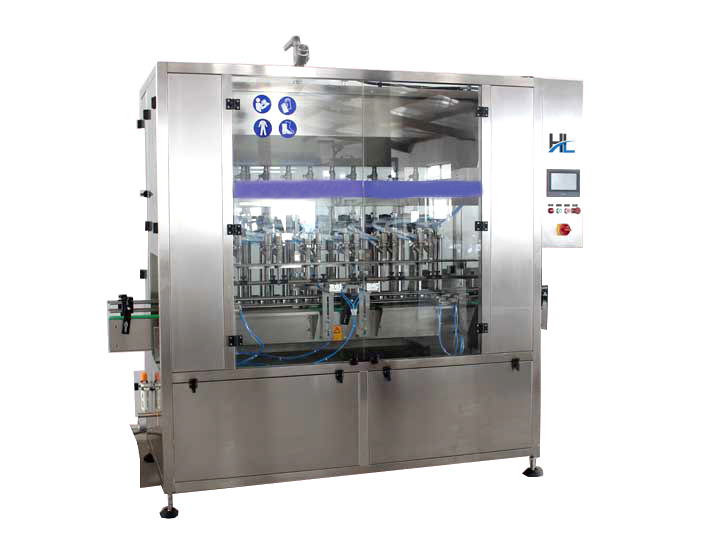

BG1000-12D intelligent high viscosity filling machine
Key word：BG1000-12D intelligent high viscosity filling machine
Classification：Filling Machine
Product overview：Accurate measurement: The servo control system to ensure that the total can reach a constant position of the piston. Variable speed filling: In the filling process, when close to the target filling……
Details
Photo gallery
Video
Product Description:
Accurate measurement: The servo control system to ensure that the total can reach a constant position of the piston.
Variable speed filling: In the filling process, when close to the target filling volume to achieve a slow speed can be applied when filling, to prevent fluid overflow bottle pollution.
Adjustment convenient: Replacement of filling in the specifications only in the touch screen you can change the parameters, and all the filling for the first time changes in place.
·Suitable diameter of bottles : Ф40mm~Ф100mm
·Measure precision : ±1% (≤200ml), ±0.5% (200ml~1000ml)
·Production capacity : ≤5000 bottles/hour
·Air pressure : 0.6~0.8Mpa
·Amount of Air-consuming : 200 l/min
·Power supply : AC 220V/50Hz
·Power : 2.5Kw
·Machine weight : about 1000Kg
·Machine dimension (L×W×H) : 2000mm×1050mm×2300mm
Accurate measurement: The servo control system to ensure that the total can reach a constant position of the piston.
Variable speed filling: In the filling process, when close to the target filling volume to achieve a slow speed can be applied when filling, to prevent fluid overflow bottle pollution.
Adjustment convenient: Replacement of filling in the specifications only in the touch screen you can change the parameters, and all the filling for the first time changes in place.
Main Performance Parameter:
·Filling volume : 60ml~1000ml·Suitable diameter of bottles : Ф40mm~Ф100mm
·Measure precision : ±1% (≤200ml), ±0.5% (200ml~1000ml)
·Production capacity : ≤5000 bottles/hour
·Air pressure : 0.6~0.8Mpa
·Amount of Air-consuming : 200 l/min
·Power supply : AC 220V/50Hz
·Power : 2.5Kw
·Machine weight : about 1000Kg
·Machine dimension (L×W×H) : 2000mm×1050mm×2300mm
-
